SUBMERSIBLE PUMPS
SUBMERSIBLE PUMPS
Submersible Pumps are highly efficient water pumping systems designed to operate fully submerged in water or other fluids. These pumps are widely used for water extraction, sewage handling, and drainage applications, offering reliable and versatile solutions.
Key Features:
- Submerged Operation: Eliminates the need for priming and reduces operational noise.
- Energy Efficiency: Designed to minimize power consumption while delivering high performance.
- Durable Construction: Made with corrosion-resistant materials for long-lasting use.
- Versatility: Suitable for various applications, including clean water, wastewater, and drainage.
Applications:
- Water Wells: Ideal for extracting water from deep underground.
- Irrigation and Drainage: Supports agricultural needs and flood control.
- Sewage Management: Efficiently handles wastewater in municipal and industrial systems.
KEFEIDA Submersible Pumps:
KEFEIDA’s Submersible Pumps, distributed by PT. Yuan Shen Indonesia, are built with cutting-edge technology and premium materials. Designed for durability and efficiency, these pumps deliver exceptional performance for diverse water management requirements.
Submersible Pumps are highly efficient water pumping systems designed to operate fully submerged in water or other fluids. These pumps are widely used for water extraction, sewage handling, and drainage applications, offering reliable and versatile solutions.
Key Features:
- Submerged Operation: Eliminates the need for priming and reduces operational noise.
- Energy Efficiency: Designed to minimize power consumption while delivering high performance.
- Durable Construction: Made with corrosion-resistant materials for long-lasting use.
- Versatility: Suitable for various applications, including clean water, wastewater, and drainage.
Applications:
- Water Wells: Ideal for extracting water from deep underground.
- Irrigation and Drainage: Supports agricultural needs and flood control.
- Sewage Management: Efficiently handles wastewater in municipal and industrial systems.
KEFEIDA Submersible Pumps:
KEFEIDA’s Submersible Pumps, distributed by PT. Yuan Shen Indonesia, are built with cutting-edge technology and premium materials. Designed for durability and efficiency, these pumps deliver exceptional performance for diverse water management requirements.

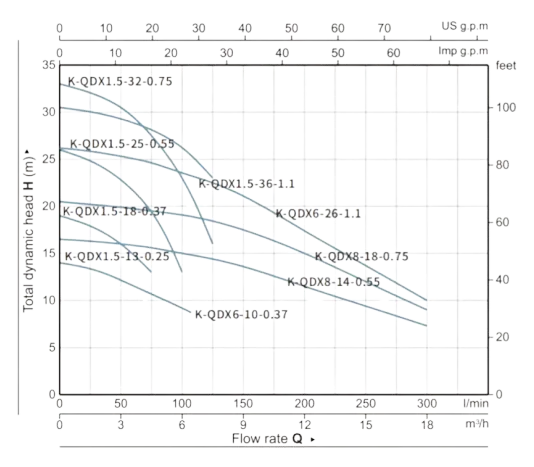

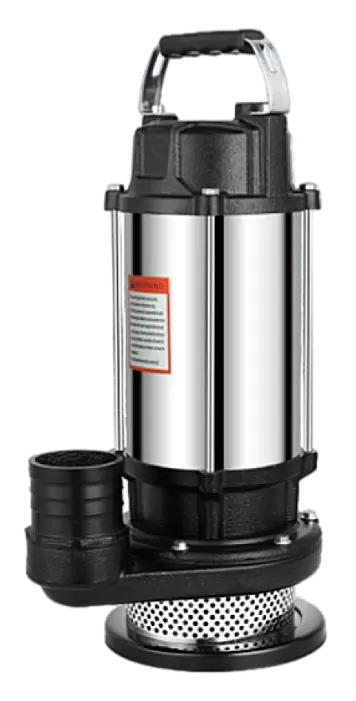

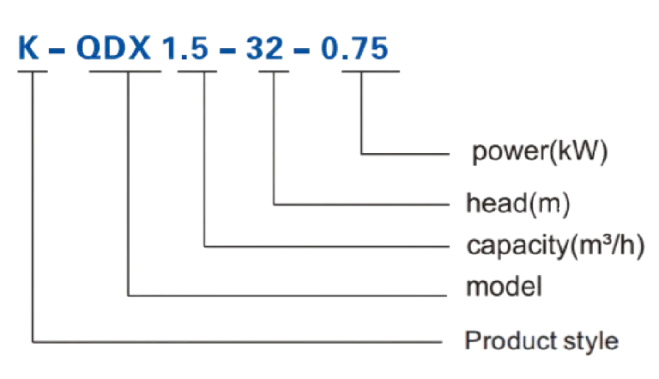

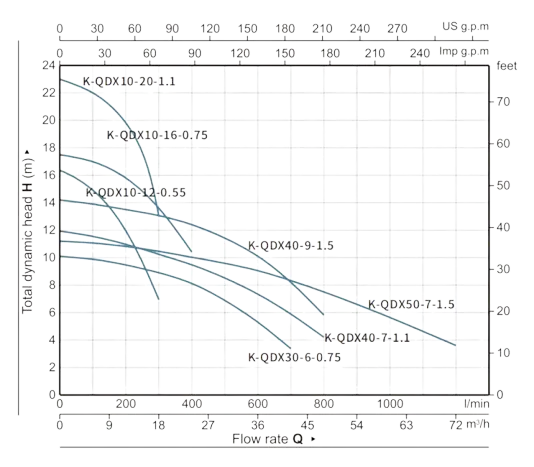

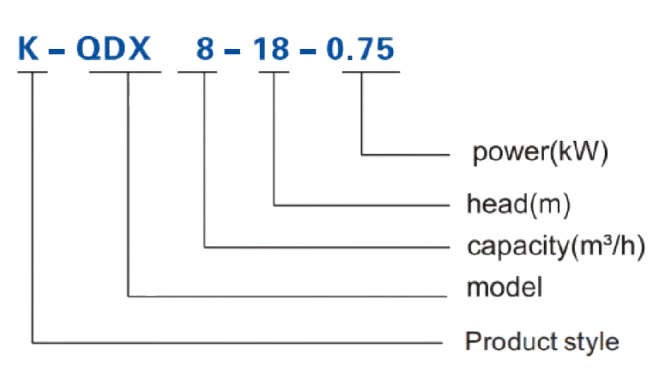

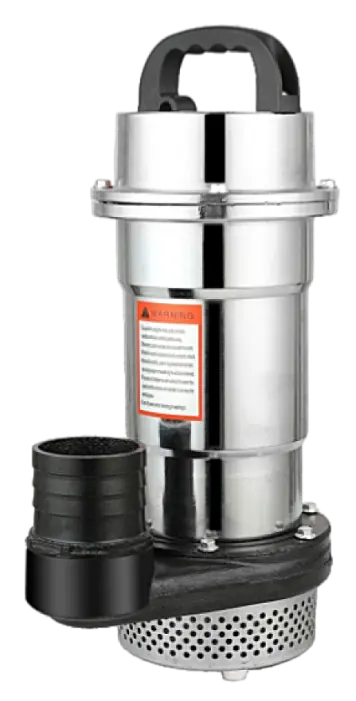

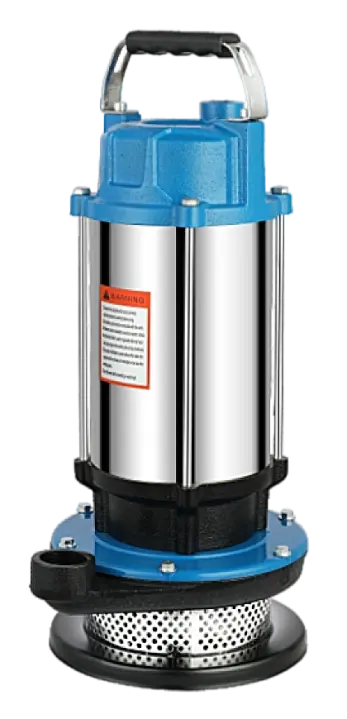

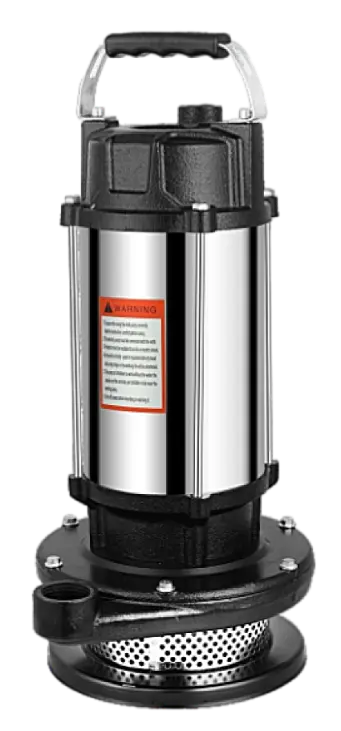

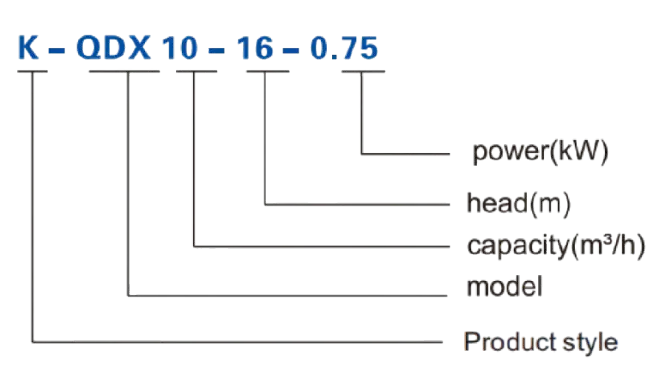

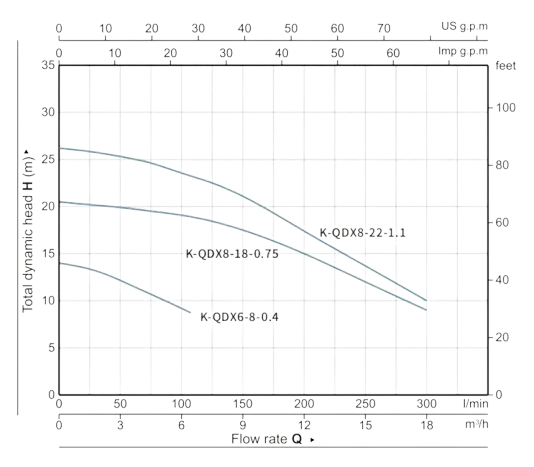

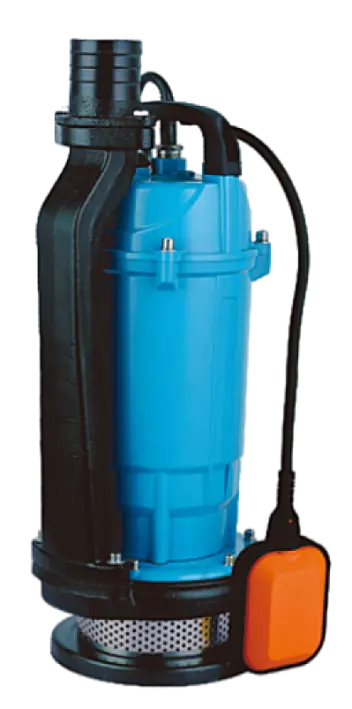

K-QDX
Application
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating conditions
Maximum fluid temperature up to +40’C
Maximum sand content: 0.1 %
Motor and Pump
High efficiency motor
Single-phase: 220-240V/50HZ
It’s available to equip with floating switch
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz

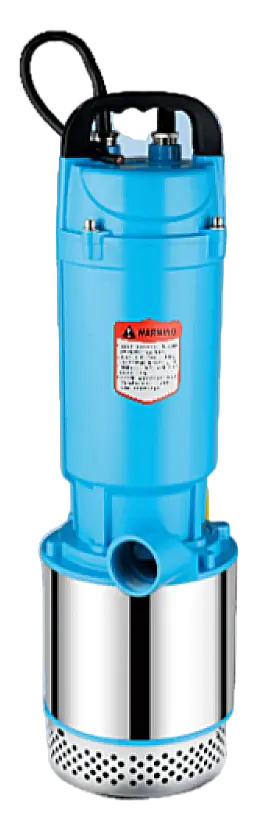

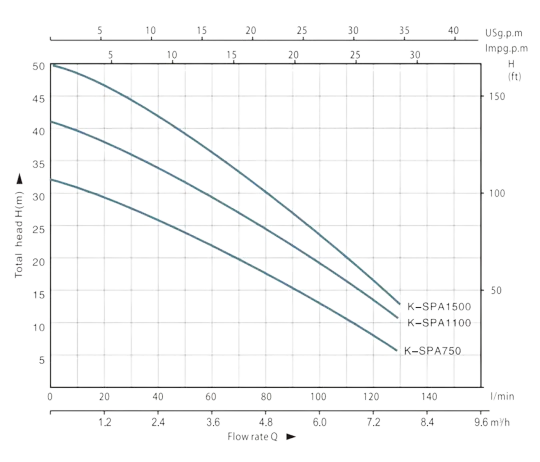

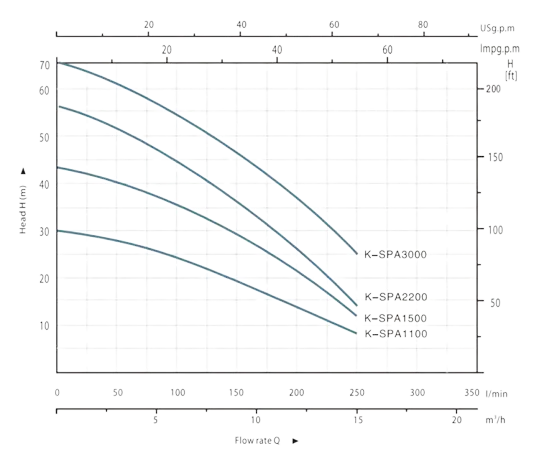

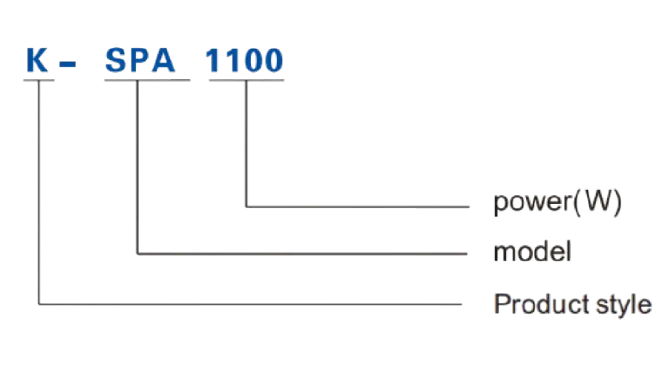

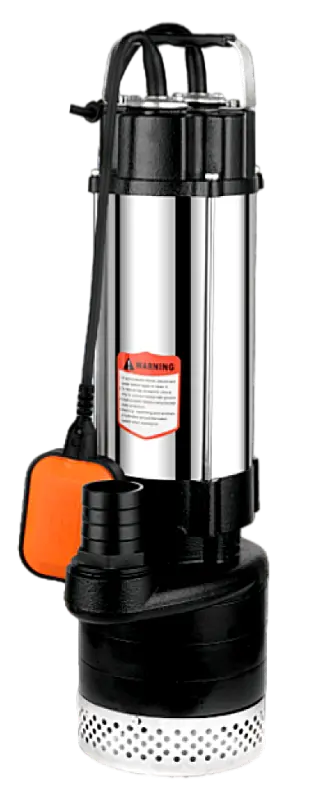

K-SPA
Application
Suitable for use in civil and agricultural applications.
The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high head and mid flow rates are required.
Operating conditions
Sm maximum immersion depth
Liquid temperature up to 35°c
Maximum ambient temperature 40°C
Motor
Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP68
Continuous service S 1
Thermal protector for single phase
Single-phase 220V /50Hz, 60Hz if request
Component Construction
Pump body: Cast iron
Motor housing: AISI304 SS
Impeller: Cast iron / PPO
Motor shaft: AISI304 SS
Mechanical seal: Ceramic-Graphite+ Ceramic-Graphite /
SIC-SIC/Ceramic-Graphite + Ceramic-Graphite
Cable: 12m power cable with plug
